GR86/86/FRS/BRZ OIL FILTER BLOCK SENSOR ADAPTER (OIL PRESS./TEMP.) - (12002802)
Ā
12002802 - Sensor attachment high mount type M20xP1.5

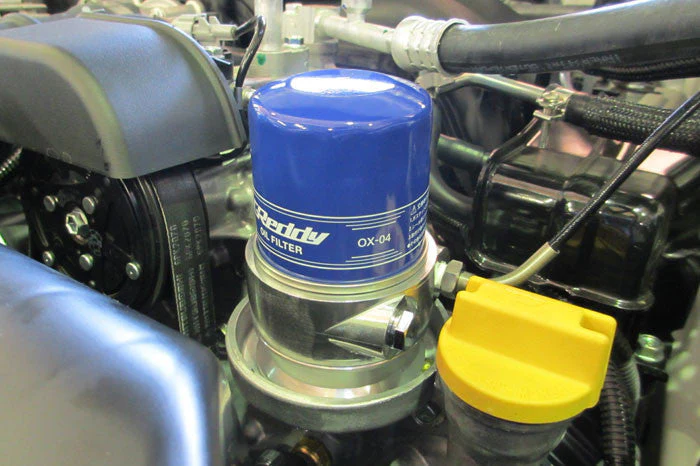

Ideal to mount Ā 1/8 BSP (JDM 1/8PT)Ā Temperature and Pressure Sensors on FA20 / 4U-GSE engines commonly found on Scion FR-S,Ā Toyota 86, and Subaru BRZ.

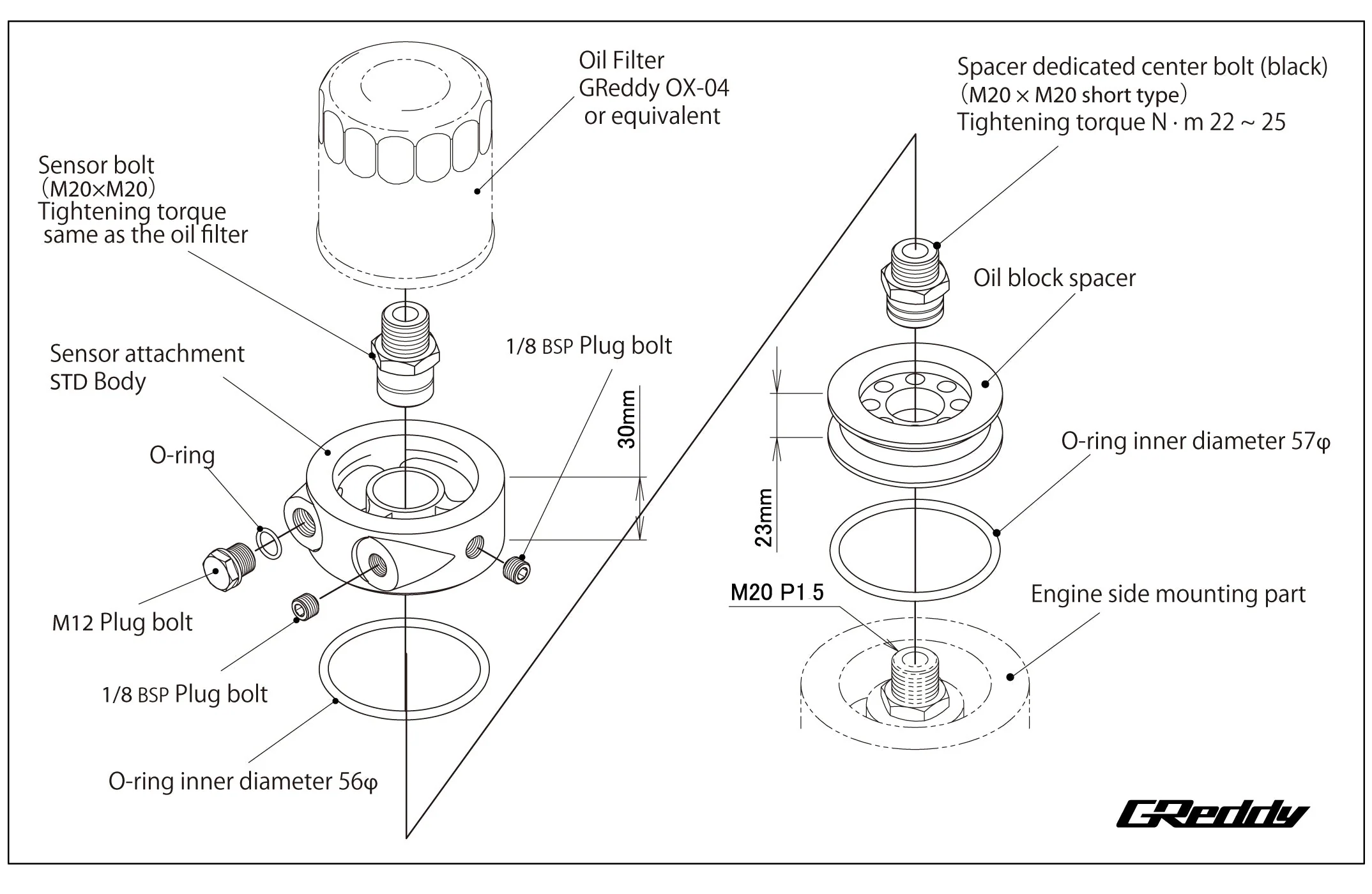

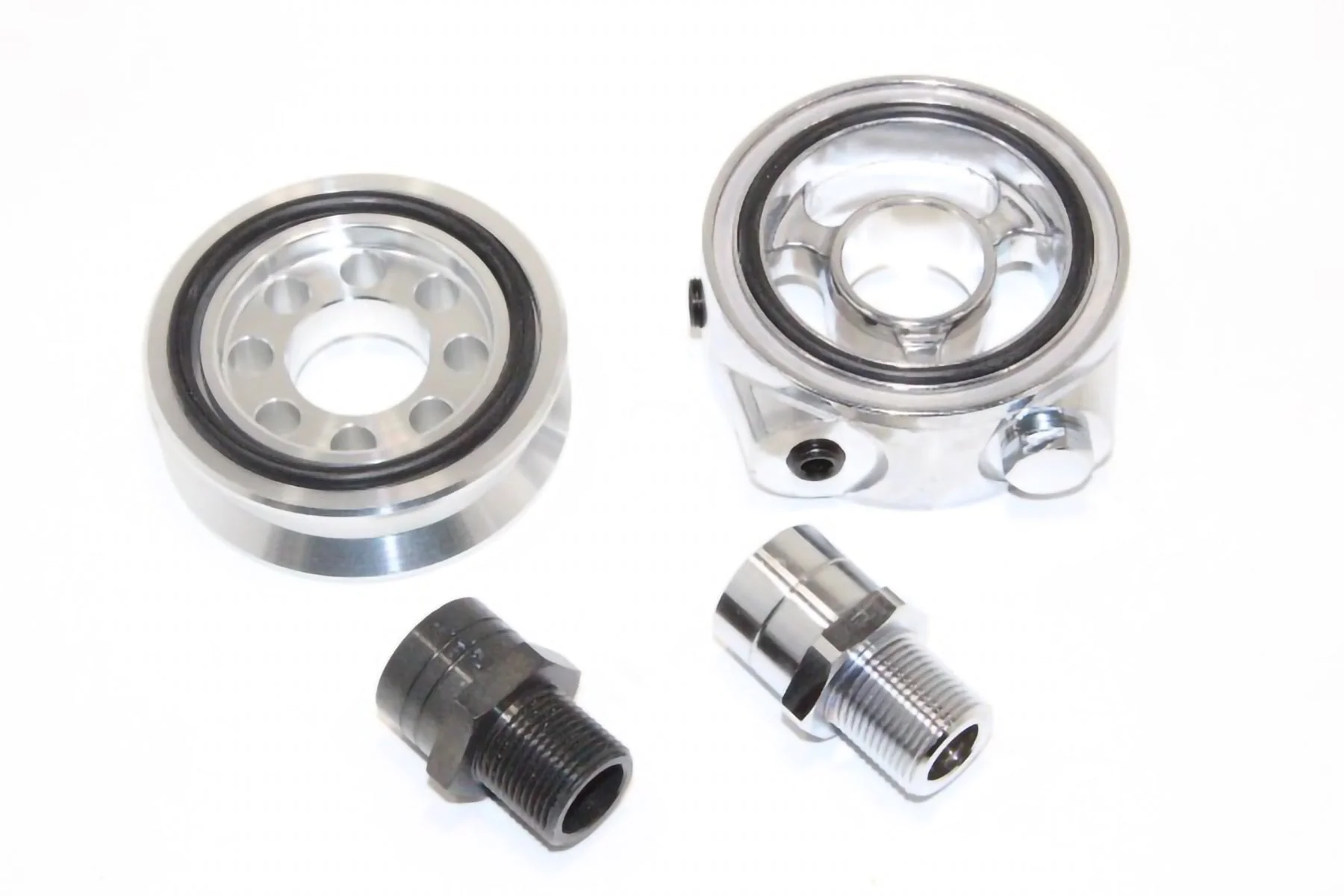

Ā Oil Block includes one extension adapter, and M20xP1.5 center bolt
Ā Also included are two common O-ring sizes:Ā I.D. #5- 56mm & #6- 65mm

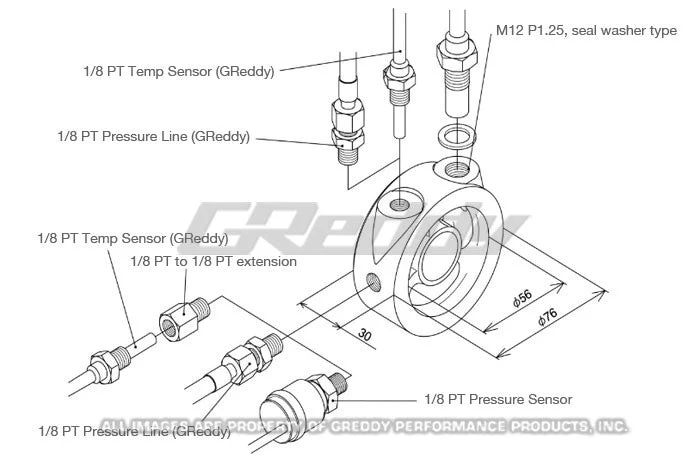

Ā Sensor ports: 2x 1/8BSP (JDM 1/8PT) for pressure and temperature, 1xĀ M12xP1.25 washer seal type.
Ā * also see GReddy OX-4 Sport Oil Filter p/n 13901104Ā (sold separately).Ā
* also see GReddy Sport Oil Filters (sold separately)
